SPECIFICATION
It can measure the shape parameters of prime lines and cross-section contours of various mechanical parts. In the bearing industry, it can measure the straightness, parallelism, inclination angle processing, circle processing (distance from straight line to tangent line, center to center distance, arc radius, distance from intersection point to center of circle, distance from center to straight line), point-line processing (distance from intersection point to straight line, distance from intersection point to center of circle, intersection point between two straight lines, distance from intersection point to intersection point), logarithmic curve, Groove width, groove depth, groove edge distance, groove center distance, inclination, horizontal distance, vertical distance and other shape parameters. The instrument is controlled by computer and can directly display the contour shape of the measured parts, and can directly mark the parameters on the displayed contour shape line, and can also print graphics and data, product quality inspection and process analysis.

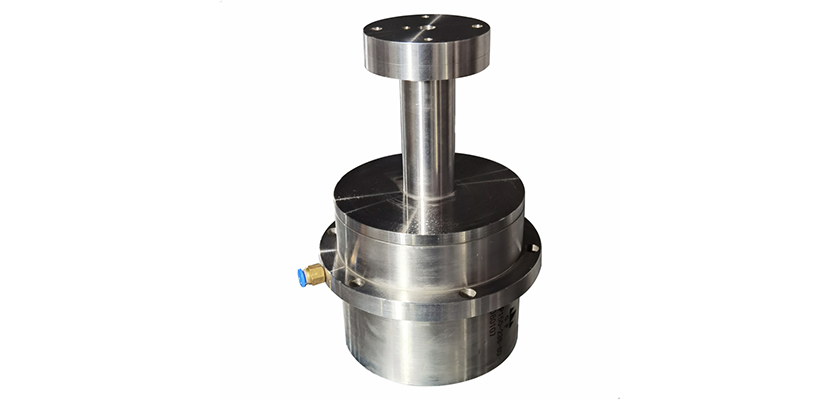

Roundness meter model: GPC230150L
