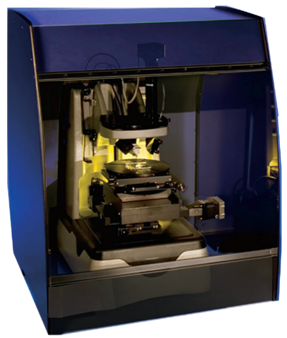

SPECIFICATION
It can measure the shape parameters of prime lines and cross-section contours of various mechanical parts. In the bearing industry, it can measure the straightness, parallelism, inclination, angle processing, circle processing (distance from straight line to tangent line, center to center distance, arc radius, distance from intersection point to center of circle, center to straight line distance), point-line processing (distance from intersection point to straight line, distance from intersection point to center of circle, intersection point to intersection point), logarithmic curve, groove width, groove depth, groove edge distance, groove center distance, inclination, horizontal distance, vertical distance and other shape parameters. The instrument is controlled by computer and can directly display the contour shape of the measured parts, and can directly mark the parameters on the displayed contour shape line, and can also print graphics and data, product quality inspection and process analysis.
1. Measurement range: Z-axis measurement height GP-THL400A: ≤ Φ600 mm, GP-THL400B: ≤ 1200 mm
X-axis movement maximum distance 400 mm minimum measuring aperture Φ9 mm
2. Movable air flotation measurement device: X-axis guide rail movement straightness: 0.5 µ m/100 mm guide rail movement distance accuracy inlet grating ruler): resolution 1 µ m, accuracy: 3 µ m/full stroke load-bearing: 40 kg
3. Sensor: The measuring needle moves up and down (range: 6mm (expandable 12 mm) vertical resolution: 1/70000
4. Adjustable range of the adjustment device: the horizontal direction of the X axis can be adjusted by 45 °; The front and rear direction of the Y axis can be adjusted by 10 mm; Adjustable sector direction 10 °;
5. Measurement accuracy (radius error): 0.1 ~ 1%
6. Repeated measurement accuracy: 3%
7. Measurement speed: 0.1 ~ 0.4 mm/s divided into 3 levels to choose
8. Power supply: 220V, 50Hz 0.5 kW
9. Air source pressure: ≥ 0.5 MPa
