SPECIFICATION
Ultra-precision vertical shaft turntable plane grinder contactless bearing, the equipment is installed vertically, grinding the plane within the range of φ 320 ~ 350 mm. It can be used as a key and important combination of the main body of the bed such as machinery, measurement, grinding, rotation, and indexing. The rigidity of the marble machine tool is large, and the main structure of the rotation of the whole machine for grinding processing has the characteristics of no vibration, high precision, no friction, and high efficiency. Grinding materials can include various rare earth materials, precious metal materials processing, cutting tools, measuring equipment, carbon steel processing, alloy steel processing, non-ferrous metal processing, gem processing and glass processing, etc.
Detailed description, specification parameters

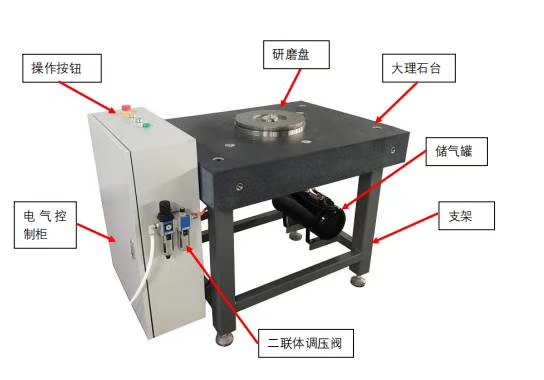

Marble bed (Order Model: GM3207B)
Uses and Features of Machine Tools
It can be widely used in various industrial fields such as automobiles, metal plates, bearings, valves, saw blades, magnetic materials and die bases.
Equipment Order Model, Name: GM3207B Ultra-precision Vertical Shaft Turntable Planar Grinder Type Selection: Cast Iron Bed (Order Model: GM3207A)
GM3207B Ultra Precision Vertical Shaft Turntable Plane Grinder Non-contact bearing, the equipment is installed vertically, grinding the plane within 320 ~ 350 mm. It can be used as a key and important combination of the main body of the bed such as machinery, measurement, grinding, rotation, and indexing. The rigidity of the marble machine tool is large, and the main structure of the rotation of the whole machine for grinding processing has the characteristics of no vibration, high precision, no friction, and high efficiency. Grinding materials can include various rare earth materials, precious metal materials processing, cutting tools, measuring equipment, carbon steel processing, alloy steel processing, non-ferrous metal processing, gem processing and glass processing, etc. It can be widely used in: precision ultra-precision machinery industry, automation industry, optical equipment industry, semiconductor equipment industry, precision control, measurement control, etc., semiconductor wafer thinning, dicing, polishing, cutting, drilling and other purposes.
This machine has three major uses in terms of load and speed in the function:
1. The slowest speed is 0.000001 rpm ~ 300 rpm for nano-scale micro-subdivision and optical roundness measurement, step meter measurement and other purposes. (Measurement Industry)
2. Tool grinding, diamond grinding, and carbon steel tool grinding at a medium speed of 500 to 7000 revolutions. (Grinding industry)
3. Set 5000 to 30000 revolutions to load the three-axis vertical optical machining center. (Machining Industry)
